DBTVX : Draught beer tanks vertical

Vertical draught beer tanks

Vertical draught beer tankThe vertical orientation of draught beer tanks has a many practical advantages:

Effective sanitation of the whole tank with only 1 spraying ball (cost savings)

Manually easy cleaning of the inner and outer area of the tank – usually it is possible to stand in the inside of the tank and it is possible to walk around the tank

Small space of floor area, effective usage of vertical room space

Easy manipulation and access to all armatures and functional parts of the tank







We offer two variations of this type beer tank :


I. DBTVI – Draught beer tanks vertical, insulated

Insulated draught beer tanks cooled with liquid is professional solution for all restaurants keepers for whom the savings of operating costs are at the very first place. Tanks include double cooling channels and the cooling liquid pours throug them – water or glycol, and what’s more the tanks have a cylindrical part (for some extra pay both bottoms could be insulated) insulated with PU foam. The outer jacket is covered with insulation and it creates a clean design of stainless steel tank. It is possible to place the tanks in a non-insulated room because insulation provides the protection against unwanted escape of cold nearby the tanks. Their advantage is all above their low electric consumption when the tanks are cooled, the need of the less powerful liquid cooler and better comfort for operators who cannot work in cold room.

Our production portfolio – Draught beer tanks vertical, insulated

  • DBTVI-500S Serving tank 500L “bag-in-box”, vertical, insulated, stainless-steelDBTVI-500S Serving tank 500L “bag-in-box”, vertical, insulated, stainless-steel
    The Draft Beer Tank DBTVI-500S is a vertical cylindrical pressure container with usable volume 500 liters for storage and serving of beer. It is equipped with four legs, safety valves and pressure valves. There is an eliptical manhole with an overpressure door on the cylindrical part of the tank. It is designed for mounting of removable polyethylene bag. Beer is filled into the bag. This is a modern beer storage technology - the BAG IN BOX. system. There are also two glass visors with armored glass for visual inspection of the contents of the tank. This tank is equipped with… Read more »
  • DBTVI-1000S Serving tank 1000L “bag-in-box”, vertical, insulated, stainless-steelDBTVI-1000S Serving tank 1000L “bag-in-box”, vertical, insulated, stainless-steel
    The Draft Beer Tank DBTVI-1000S is a vertical cylindrical pressure container with usable volume 1000 liters for storage and serving of beer. It is equipped with four legs, safety valves and pressure valves. There is an eliptical manhole with an overpressure door on the cylindrical part of the tank. It is designed for mounting of removable polyethylene bag. Beer is filled into the bag. This is a modern beer storage technology - the BAG IN BOX. system. There are also two glass visors with armored glass for visual inspection of the contents of the tank. This tank is equipped with… Read more »

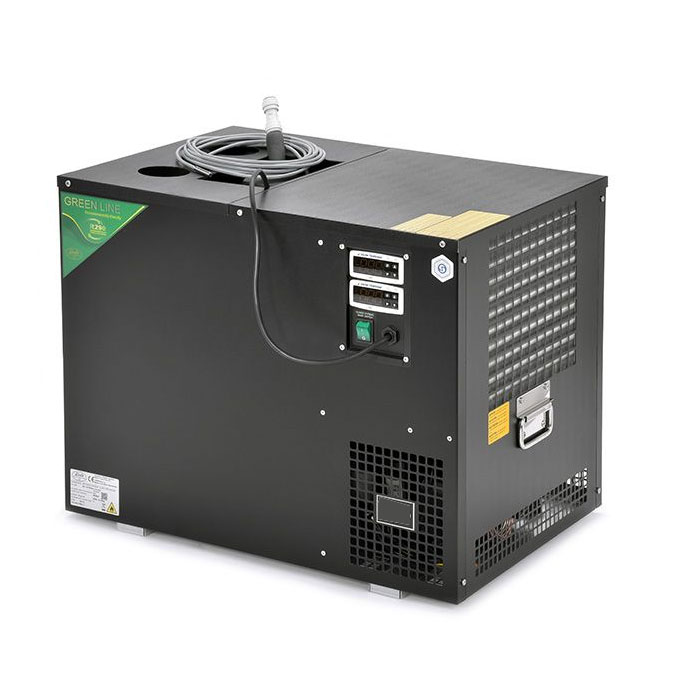

  • CLC-4P2300 : Compact liquid cooler 2.3 kW with four pumps and temperature regulatorsCLC-4P2300 : Compact liquid cooler 2.3 kW with four pumps and temperature regulators
    The CLC-4P2300 GreenLine is the compact water or glycol cooler with integrated condenser. This cooling unit is designed to independent cooling up to four beverage tanks. It can be used for cooling beer, ciders, freeze-drying wines or heating mash. Cooling power is 2300 W. Read more »
WordPress RSS Feed Retriever by Theme Mason

More informationsYour inquiry


II. DBTVN – Draught beer tanks vertical, non-insulated

These draught beer tanks are in the easiest construction and so it is possible to buy them for the lowest price. These tanks are in mono-jacketed version without any double cooling channels. Tanks have to be placed in insulated chilled room or chilled box, where the space is cooled with cooling unit. Their advanatage is their low purchase cost. And their disadvantage is that the temperature in each tank cannot be regulated regardless of the other tanks and the human operating comfort is lower because opertors work in cold and humid surroundings. The electric consumption is higher when tanks are cooled with air and not with the liquid. But besides that this type of tank is used the most in restaurants because of the investment savings.

Our production portfolio – Draught beer tanks vertical, non-insulated

  • DBTVN-500S Serving tank 500L “bag-in-box”, vertical, non-insulated, stainless-steelDBTVN-500S Serving tank 500L “bag-in-box”, vertical, non-insulated, stainless-steel
    The beverage serving tank DBTVN-500S is a vertical cylindrical pressure container with usable volume 500 liters for storage and serving of beer. It is equipped with four legs, safety valves and pressure valves. There is an eliptical manhole with an overpressure door on the cylindrical part of the tank. It is designed for mounting of removable polyethylene bag. Beer is filled into the bag. This is a modern beer storage technology - the BAG IN BOX. system. There are also two glass visors with armored glass for visual inspection of the contents of the tank. This tank is not equipped… Read more »
  • DBTVN-1000S Serving tank 1000L “bag-in-box”, vertical, non-insulated, stainless-steelDBTVN-1000S Serving tank 1000L “bag-in-box”, vertical, non-insulated, stainless-steel
    The beverage serving tank DBTVN-1000S is a vertical cylindrical pressure container with usable volume 1000 liters for storage and serving of beer. It is equipped with four legs, safety valves and pressure valves. There is an eliptical manhole with an overpressure door on the cylindrical part of the tank. It is designed for mounting of removable polyethylene bag. Beer is filled into the bag. This is a modern beer storage technology - the BAG IN BOX. system. There are also two glass visors with armored glass for visual inspection of the contents of the tank. This tank is not equipped… Read more »
WordPress RSS Feed Retriever by Theme Mason

More informationsYour inquiry


>> More about draught beer tanks
